赛芯微电子有限公司(XySemi Inc)致力于依靠自主专利的功率器件结构及排他的半导体工艺为客户提供设计简洁，性能优良，成本低廉，集成度高的电源信息管理方案。
| I2C | Y | N | N | N | N | N | QFN32 | 4.9K/包 |
| 序号 | 类型 | 名称 | 封面 | 热度 | 功能应用 | |

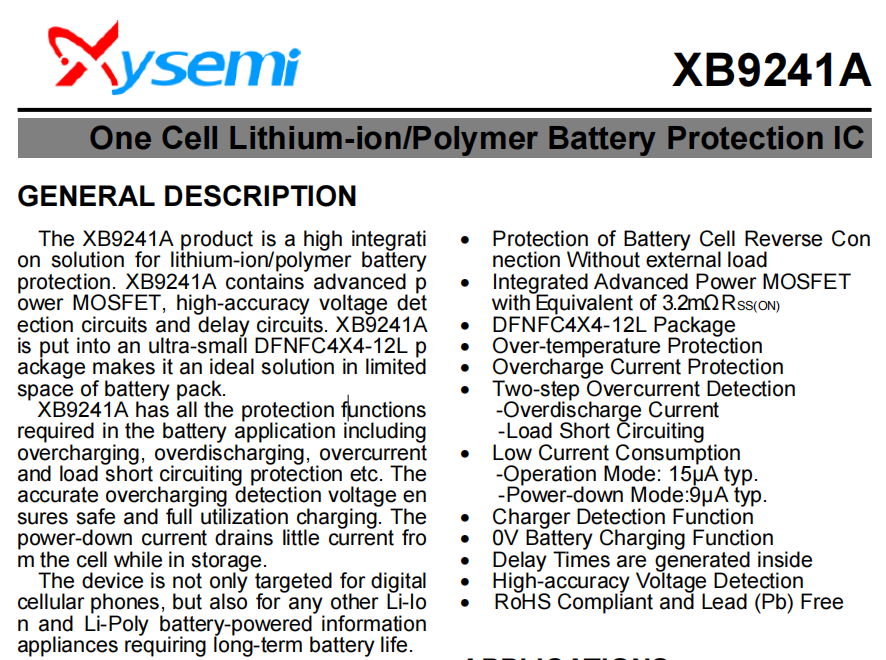

| 1 | 锂电保护 | XB9241A |  |
10 | The XB9241A product is a high integrati on solution for lithium-ion/polymer battery protection. XB9241A contains advanced p ower MOSFET, high-accuracy voltage det ection circuits and delay circuits APPLICATIONS E-Smoke TYPE-C/QC 2.0 Quick-Charger Huge-Capacity Li-Battery Pack | 详情 |
| 2 | 控制器 | XR4981 |  |
282 | The XR4981 is a high efficiency synchronous boost controller that converts from 3V~36V input range and up to 36V output voltage with an outside N-channel MOSFET for the synchronous switch. APPLICATIONS: Power Bank, QC 2.0 Device, Type C USB Device, Power Amplify Device, Portable Class D Device... | 详情 |
| 3 | 充电 | XC5017 |  |
225 | The XC5017 is a complete constant current & constant voltage linear charger for single cell lithium-ion batteries. Furthermore, the XC5017 is specifically designed to work within USB power specifications. APPLICATIONS: Wearable device, Small capacity battery charger application, Bluetooth 、GPS Applications... | 详情 |
| 4 | 充电 | XC5103 H |  |
270 | The XC5103H is a complete constant current & constant voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the XC5103H ideally suited for portable applications. APPLICATIONS: Cellular Telephones, PDAs, MP3 /MP4 Players, Charging Docks and Cradles... | 详情 |
| 5 | 低压线LDO | XLD3011 |  |
261 | The XLD3011 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 28V. APPLICATIONS: Battery-Powered equipment, Communication equipment, Audio/Video equipment... | 详情 |
| 6 | 低压线LDO | XLD6031 |  |
292 | The XLD6031 Series product is a set of three-terminal with enable function low power high voltage implemented in CMOS technology. They can deliver 300mA output current and allow an input voltage as high as 6V. APPLICATIONS: Battery-Powered equipment, Communication equipment, Audio/Video equipment, MP3 Player... | 详情 |
| 7 | 低压线LDO | XLD6032 |  |
277 | The XLD6032 is a set of three-terminal with enable function low power high voltage implemented in CMOS technology. They can deliver 300mA output current and allow an input voltage as high as 6V. APPLICATIONS: Communication equipment, Audio/Video equipment, MP3 Player, Hand-Held Instruments, Palmtop Computers... | 详情 |
| 8 | BOOST升压 | XR1151 |  |
270 | The XR1151 step-up switching regulator generates an output voltage of up to 26V from an input voltage as low as 1.6V. APPLICATIONS: White LED Driver Supply, Local 3.3V or 5V supply, Battery Back-up... | 详情 |
| 9 | BOOST升压 | XR2204 |  |
246 | The XR2204 is a high frequency, high efficiency DC to DC converter with an integrated 2.8A, 0.1Ω power switch capable of providing an output voltage up to 26V. APPLICATIONS: Handheld Devices, GPS Receiver, Digital Still Camera, Portable Applications, DSL Modem, PCMCIA Card, TFT LCD Bias Supply... | 详情 |
| 10 | BOOST升压 | XR2204D |  |
224 | The XR2204D is a high frequency, high efficiency DC to DC converter with an integrated 4A, 0.1Ω power switch capable of providing an output voltage up to 14V. APPLICATIONS: Handheld Devices, GPS Receiver, Digital Still Camera, Portable Applications, DSL Modem, PCMCIA Card, TFT LCD Bias Supply.... | 详情 |
